240-480kW Scalable Industrial DC EV Charger with Dual-Gun Simultaneous Charging for Heavy-Duty Applications
Products
Contact Us
|
240-480kW Scalable Industrial DC EV Charger with Dual-Gun Simultaneous Charging for Heavy-Duty Applications
| MOQ: | 50 |
| Standard Packaging: | Wooden Box |
| Delivery Period: | 5-10 Days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 100/week |
Detail Information
Place of Origin
China
Brand Name
Huijie
Rated Power:
240kW - 480kW (Scalable)
Dimensions (LxWxH):
900 X 700 X 1900 Mm
Weight:
440 Kg
Protection Rating:
IP54 / IK10
Supported Connectors:
GB/T, CCS1, CCS2, CHAdeMO, NACS
Charging Cable Length:
7 Meters Per Gun
Input Voltage:
400VAC / 480VAC (3P+N+PE)
Input Frequency:
50/60 Hz
Output Voltage Range:
200 - 1000 VDC
Max Output Current:
300 A Per Gun
Efficiency:
Peak Efficiency ≥96%
Power Factor:
>0.98
Highlight:
480kW Scalable DC Fast Charger Station
,Dual-Gun Simultaneous Charging Industrial DC EV Charger
,Heavy-Duty Applications High-Power EV Charger
Product Description

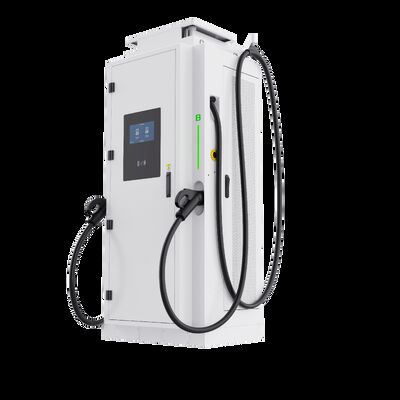

240-480kW Industrial DC EV Charger
Dual-gun simultaneous charging solution specifically engineered for heavy trucks, commercial fleets, and industrial vehicles requiring ultra-fast charging capabilities.
Product Overview
The WY10A Series redefines high-power electric vehicle charging for commercial and industrial applications. With a scalable architecture delivering up to 480kW, this rugged charger meets the demanding energy requirements of electric buses, heavy-duty trucks, construction vehicles, and large fleets. Its dual-gun simultaneous charging capability maximizes station uptime and efficiency, allowing two vehicles to charge concurrently or a single large-capacity vehicle to receive a full charge at unprecedented speed.
Key Features & Advantages
-
Ultra-High Power & Scalability
Delivers up to 480kW output power with modular design that can start at 240kW and be expanded on-site, providing future-proof investment. -
Dual-Gun Simultaneous Charging
Two independent charging guns enable concurrent charging of two vehicles or combined power for one vehicle, optimizing charging hub throughput. -
Heavy-Duty Application Ready
300A output current and 200-1000VDC range specifically designed for large battery packs in electric trucks, buses, and specialized work vehicles. -
Smart & Connected Operation
OCPP 1.6 compliant for seamless network integration, featuring 7-inch touchscreen, optional RFID/POS payment, and remote management via WiFi/Ethernet/4G. -
Robust & Reliable Design
Operates in harsh environments (-30°C to 75°C) with IP54 and IK10 vandal-resistant rating, comprehensive electrical protections, and emergency stop safety features.
Applications & Usage
- Fleet Depots: Electric bus, truck, taxi, and logistics fleets requiring overnight or opportunity charging
- Public Heavy-Duty Corridors: Highway rest stops and dedicated truck stops
- Industrial & Construction Sites: Charging for electric mining trucks, loaders, and port equipment
- Public Fast-Charging Hubs: High-traffic locations requiring maximum charging capacity and reliability
Frequently Asked Questions
What does "scalable to 480kW" mean?
The charger's power cabinet features modular architecture. You can initially install a lower power module (e.g., 240kW) and later add more power modules within the same cabinet to increase total output up to 480kW, minimizing upfront costs and enabling easy capacity expansion.
How does the dual-gun charging work? Can both guns deliver full power?
The system intelligently manages available power (e.g., 480kW). It can allocate full power to a single gun for ultra-fast charging of one vehicle, or split power dynamically between two guns (e.g., 240kW each) to charge two vehicles simultaneously. Power distribution is managed automatically based on vehicle demand.
What electrical infrastructure is required for installation?
This high-power charger requires a dedicated three-phase 400V or 480V AC high-current supply. A detailed site assessment and installation by certified professional electricians are mandatory. Technical support for grid connection planning is provided.
Is this charger suitable for public charging networks?
Absolutely. Full OCPP 1.6 compliance ensures connectivity to any major Central Management System for remote monitoring, user authentication, payment processing, and load management, making it ideal for publicly operated charging stations.
What is the difference between the WY10A and your lower-power chargers?
The WY10A is designed for commercial and industrial-scale charging. Key differentiators include much higher power output (up to 480kW), dual-gun operation, robust construction for high daily use (IK10), and scalability—features essential for fleet operations and heavy vehicles, unlike lower-power models aimed at passenger cars or light commercial use.
