40KW Portable Dual-Gun DC Fast Charger for Roadside Rescue and EV Fleets

Name: 40KW Portable Dual-Gun DC Fast Charger for Roadside Rescue and EV Fleets
Brand: Sichuan Huijie Green Power Technology CO.,Ltd
SKU: HJ1000-40Y-2A
Availability: InStock

Brand Name:	Huijie
Model Number:	HJ1000-40Y-2A
MOQ:	10
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	1000/week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Type:

40kW Mobile DC Dual‑gun Charger

AC Input:

3P+N+PE (TN‑S Or TN‑C‑S)

Input Voltage:

Phase Voltage 220VAC, Line Voltage 380VAC

Input Current:

0–93A

Rated Power:

40 KW

Power Factor:

≥0.99

Efficiency:

≥95% (full Load)

DC Output Voltage:

200 V – 1000 VDC

Max Output Current:

125 A

Number Of Guns:

Current Stabilizing Precision:

≤ ±1%

Voltage Stabilizing Precision:

≤ ±0.5%

Display:

7‑inch Color LCD Touchscreen

Card Reader:

ISO/IEC 14443 A

Protection Rating:

IP54

Operating Temperature:

-25°C To +50°C

Storage Temperature:

-40°C To +80°C

Altitude:

<2000 M

Cooling:

Forced Air (fan + Dust Filter)

Packaging Details:

wooden box

Highlight:

Dual-Gun DC Fast Charger

40KW Portable DC Fast Charger

Roadside Rescue DC Fast Charger

Product Description

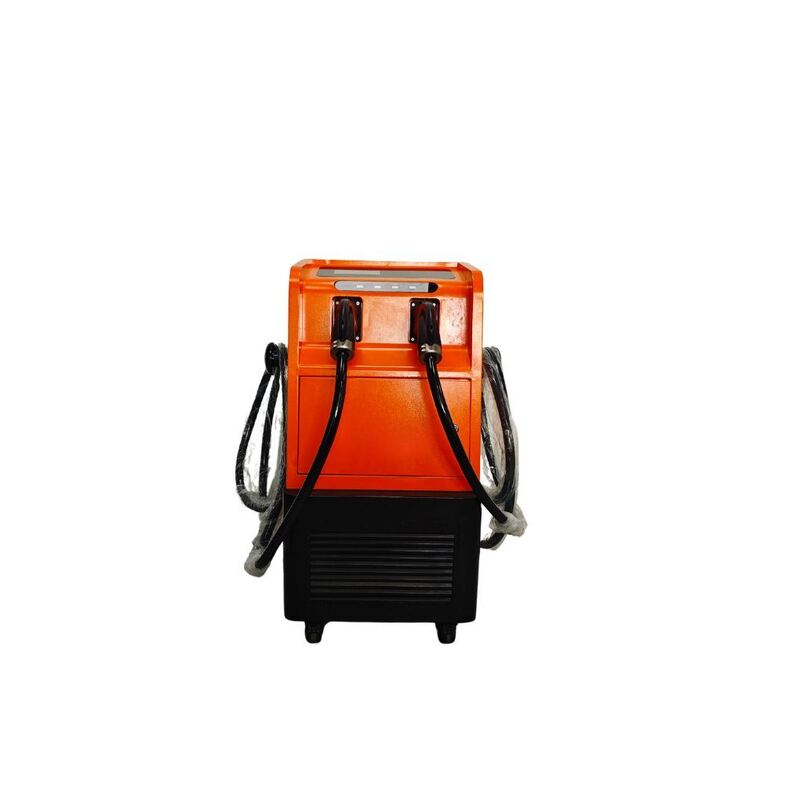

HJ1000-40Y-2A – 40kW Mobile Dual-Gun DC Fast Charger

Portable, High-Power EV Charging for Roadside Rescue, Fleets, and Temporary Hubs

Product Overview

The HJ1000-40Y-2A is a 40kW mobile DC fast charger designed to deliver reliable, high-power charging wherever it is needed. Unlike fixed-position chargers, this portable dual-gun unit can be moved to roadside breakdowns, temporary events, fleet depots, or construction sites - bringing fast charging directly to electric vehicles.

With a wide output voltage range of 200-1000 VDC and up to 125A per gun (dynamic power sharing), it is compatible with all modern passenger EVs and many light-duty commercial vehicles. Built to IP54 standards with a 7-inch color touchscreen, integrated card reader, and comprehensive safety protections, this charger offers a practical, flexible solution for operators who need charging on the move.

Key Features & Benefits

True Mobility for Demanding Situations

Mobile design - wheeled chassis or portable form factor allows easy transport and deployment
Ideal for roadside rescue - reach stranded EVs without towing
Temporary charging hubs - festivals, construction sites, or emergency response
Fleet support - bring charging to vehicles parked in remote depot areas

Powerful & Flexible DC Fast Charging

40kW rated output - charges most EVs to 80% in 30-60 minutes
200-1000 VDC output - covers all standard EV battery voltages
Dual guns - charge two vehicles simultaneously with dynamic power sharing

User-Friendly Interface & Access Control

7-inch color LCD touchscreen - clear charging status and energy data
Integrated card reader - supports RFID cards for secure authentication
Intuitive menus - password-protected settings for operators

Rugged & Weather-Resistant

IP54 rating - protected against dust and water splashes
Wide temperature range - operates from -25°C to +50°C
Durable construction - withstands mobile use and harsh environments

Comprehensive Safety & Protection

Built-in protections - over/under voltage, short circuit, overcurrent
Emergency stop button - immediate shutdown capability
Insulation monitoring - ensures safe operation
Compliance - meets relevant safety standards

Easy Maintenance

Removable dust filter - protects internal components
Replaceable fans - tool-accessible for quick service
Visual inspection indicators - simplify troubleshooting

Applications

Scenario	Why Choose HJ1000-40Y-2A
Roadside assistance	Tow trucks can carry this unit to charge stranded EVs on the spot, eliminating expensive tows
Temporary charging events	Concerts, sports events, fairs - provide fast charging without permanent infrastructure
Fleet depots	Move the charger between parking areas to cover different vehicle groups as needed
Construction & mining sites	Charge electric site vehicles where grid connection is temporary
Emergency backup	Keep as a mobile reserve for when fixed chargers fail or during natural disasters
Dealerships & workshops	Charge test-drive or customer vehicles without installing a fixed station

Frequently Asked Questions

What makes this charger "mobile"?

It is designed to be moved and deployed where needed - ideal for roadside rescue, temporary events, fleet depots, or as a backup when fixed chargers fail.

Can both guns charge two vehicles at the same time?

Yes, it is a dual-gun charger with dynamic power sharing. Total power is 40kW, split between the two guns based on vehicle demand.

What is the maximum output current per gun?

125A. Combined output is limited by the 40kW total power (e.g., both guns at 125A would exceed 40kW unless voltage is low; the system manages this intelligently).

What vehicles are compatible?

Any EV that accepts DC fast charging via CCS or CHAdeMO (with appropriate cable). Output voltage ranges from 200-1000V, covering all modern passenger EVs and many light-duty trucks.

How is the charger powered?

It requires a 3-phase 380V AC supply (32A or 63A industrial socket/aviation plug). The manual states an aviation plug must be used to handle 40kW.
