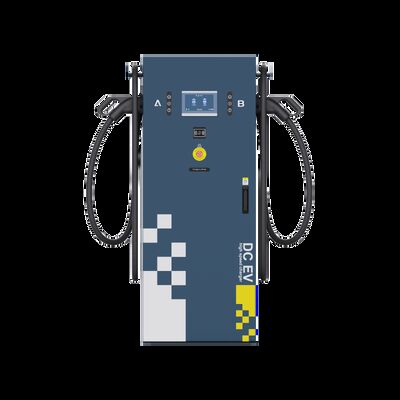

80kW DC EV Charger Fast Charging Station with Dual Gun and V2G Technology
| MOQ: | 50 |
| Standard Packaging: | wooden Box |
| Delivery Period: | 5-10 days |
| Payment Method: | L/C,D/A,T/T,D/P,Western Union |
| Supply Capacity: | 1000/week |
Detail Information
Place of Origin
China
Brand Name
Huijie
Model Number
WY04
Dimensions (L X D X H):
600mm X 700mm X 1870mm
Weight:
200kg
Length Of Charging Cable:
5m
Connectors:
GBT/CCS2/CCS1/CHAdeMO/NACS
Input Voltage:
400VAC / 480VAC (3P+N+PE)
Input Frequency:
50/60Hz
Output Voltage:
200-1000VDC
Output Current:
1-250A
Rated Power:
60-80kW
Efficiency:
Peak Efficiency >96%
Power Factor:
>0.98
Communication Protocol:
OCPP, State Grid Corporation Of China, YKC, Xiaoju And Other Operating Platforms.
Display:
7" LCD With Touch Screen
Access Control:
RFID/ISO/IEC 14443A/B / POS Machine (Optional)
Communication:
WiFi, Ethernet / 3G/4G Modem (Optional)
Power Electronics Cooling:
Air Cooled
Operating Temperature:
-30°C To 75°C
Working / Storage Humidity:
≤95% RH / ≤99% RH (Non-condensing)
Altitude:
<2000m
Ingress Protection:
IP54 / IK10
Safety Protection:
Overvoltage Protection, Lightning Protection, Overcurrent Protection, Leakage Protection, Waterproof Protection, Etc.
Emergency Stop:
Emergency Stop Button Disables Output Power
Highlight:
80kW DC EV Charger
,Dual Gun Fast Charging Station
,V2G EV Charging Adapter
Product Description
80kW DC EV Charger Dual Gun V2G OCPP RFID Fast Charging Station
Advanced DC Fast Charging Solution
Elevate your EV charging network with this robust 60-80kW DC fast charger featuring a modern cabinet design that combines technological groove aesthetics with practical physical protection. Engineered for high-traffic locations including highways, parking lots, and commercial hubs, this station supports single or dual guns for efficient parallel charging, significantly reducing wait times during peak hours.
Advanced functionalities include V2G (Vehicle-to-Grid), V2L (Vehicle-to-Load), and V2H (Vehicle-to-Home) for bidirectional energy management, adjustable output power for customized charging sessions, and secure access via RFID/ISO/IEC 14443A/B or optional POS/credit card reader.
Key Features & Specifications
| Power Output | Adjustable from 60kW to 80kW, with output up to 250A and 200-1000VDC |
| Connector Compatibility | GBT, CCS2, CCS1, CHAdeMO, and NACS |
| Gun Configuration | Single or dual connectors for parallel charging |
| Access Methods | RFID/ISO/IEC 14443A/B cards, optional POS/credit card reader |
| Platform Integration | OCPP compliant with support for State Grid, YKC, Xiaoju platforms |
| Connectivity | WiFi, Ethernet, 3G, 4G for remote monitoring |
| Display & Control | 7" LCD touch screen for intuitive operation |
| Efficiency & Cooling | Air cooling system maintains peak efficiency >96% |
| Safety Ratings | IP54 ingress protection, IK10 impact protection |
| Safety Features | Overvoltage, lightning, overcurrent, leakage protection, waterproofing, emergency stop button |
Frequently Asked Questions
What power options are available?
Adjustable from 60kW to 80kW, with output up to 250A and 200-1000VDC.
Does it support multiple guns?
Yes, single or dual connectors for parallel charging.
Which connectors are compatible?
GBT, CCS2, CCS1, CHAdeMO, and NACS.
What access methods are there?
RFID/ISO/IEC 14443A/B cards, optional POS/credit card reader.
Is it compatible with smart platforms?
Supports OCPP, State Grid, YKC, Xiaoju, with WiFi/Ethernet/3G/4G connectivity.
