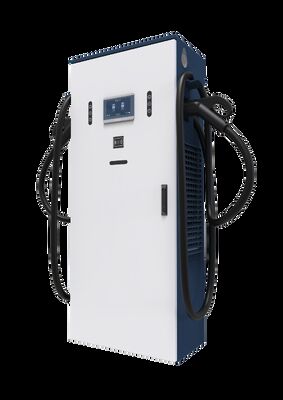

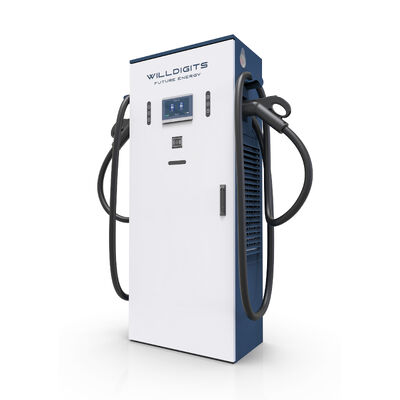

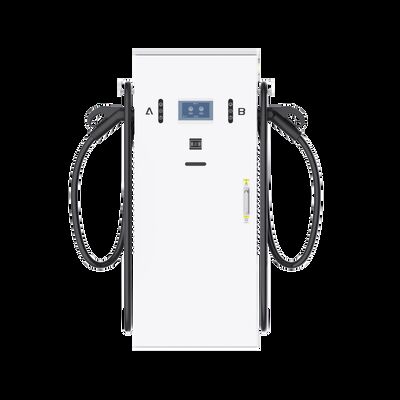

240kW DC Fast Charger Station with Dual Gun Parallel Charging and OCPP RFID for Efficient EV Charging
| MOQ: | 50 |
| Standard Packaging: | wooden box |
| Delivery Period: | 5-10 Days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 100/week |
Detail Information
Place of Origin
China
Brand Name
Huijie
Model Number
WY06
Dimensions (L X D X H):
700mm X 400mm X 1700mm
Weight:
225kg
Length Of Charging Cable:
5m
Connectors:
GBT/CCS/CCS1/CHAdeMO/NACS
Input Voltage:
400VAC / 480VAC (3P+N+PE)
Input Frequency:
50/60Hz
Output Voltage:
200-1000VDC
Output Current:
1-250A
Rated Power:
40-240kW
Efficiency:
Peak Power >96%
Power Factor:
>0.98
Communication Protocol:
OCPP, State Grid Corporation Of China, YKC, Xiaoju And Other Operating Platforms.
Display:
7" LCD With Touch Screen
Access Control:
RFID/ISO/IEC 14443A/B / POS Machine (Optional)
Communication:
WiFi, Ethernet / 3G/4G Modem (Optional)
Power Electronics Cooling:
Air Cooled
Operating Temperature:
-30°C To 75°C
Working / Storage Humidity:
≤95% RH / ≤99% RH (Non-condensing)
Altitude:
<2000m
Ingress Protection:
IP54 / IK10
Safety Protection:
Overvoltage Protection, Lightning Protection, Overcurrent Protection, Leakage Protection, Waterproof Protection, Etc.
Emergency Stop:
Emergency Stop Button Disables Output Power
Highlight:
240kW DC Fast Charger Station
,Dual Gun Parallel Charging EV Charger
,OCPP RFID DC EV Charger
Product Description
240kW DC EV Charger Dual Gun Parallel OCPP RFID Fast Station
High-Performance DC Fast Charging Solution
Designed for space-constrained environments including urban areas and narrow installations, this 40-240kW DC fast charger features a slim cabinet design with minimal site requirements and convenient wall mounting capability. The front-opening door facilitates easy maintenance, while protective side panels enhance both durability and aesthetics without compromising functionality.
Support for single or dual guns enables parallel charging to maximize efficiency during peak demand periods. Adjustable output power allows for customized configurations, and integration with V2G/V2L/V2H technologies adds versatility for comprehensive energy management solutions.
Key Features
- Parallel charging capability with power setting adjustments
- Optional credit card reader and OCPP standard compliance
- Multiple installation angles for enhanced flexibility
- Secure access via RFID/ISO/IEC 14443A/B authentication
- Air-cooled operation for reliable performance in -30°C to 75°C conditions
- Peak efficiency >96% with power factor >0.98
- IP54 ingress protection and IK10 impact resistance
Frequently Asked Questions
What power range is supported?
Adjustable from 40kW to 240kW, with output up to 250A and 200-1000VDC.
Does it allow multiple vehicles to charge?
Yes, supports parallel charging with single or dual guns for multiple vehicle charging capability.
Which connectors are available?
GBT, CCS, CCS1, CHAdeMO, and NACS connector compatibility.
How is payment and access handled?
RFID/ISO/IEC 14443A/B card authentication with optional POS/credit card reader integration.
Is it compatible with management systems?
Supports OCPP protocol and integration with State Grid, YKC, and Xiaoju platforms via WiFi, Ethernet, 3G, or 4G connectivity.
