Wall Mounted DC EV Charger 30kW CCS2 GBT One-Click Start IP30
| Model: | WY-20kW | Input Voltage: | 380 VAC/400VAC(3P+N+PE)|| 50Hz |
| Output Voltage: | 200-750VDC | Maximum Output Current (Default): | 50A (Chdemo Is 37A)/80A |
| Gun Head Standard: | GBTICCS1/CCS2/CHAdeMO/Tesla | Charging Module Type: | 20kW |
| Effidengy: | 94% Full | power factor: | >0.98 |
| Working temperature: | -30C To 75C | Altitude: | <3000m |
| Storage Humidity: | 95% RH 99% RH (no Condensation) | Size (L x D x H): | 3*6mm2+2*4mm2 1m 40A/ 3*10mm2+2*6mm2 1m 63A |
| Start Method: | Press And Hold The Power Button For 2 Seconds To Start | shutdown: | Short Press Power Button, Stop For 2 Seconds |
| Supported Protocol Standards: | GBT18487&GBT 27930/IS0O 15118/IEC61851/SAEJ1772/CHAdeMO1.2&CHADEMO2.0/ NACS, Etc. | Charging Gun Length: | 3.5m/ 5m/ 7m (optional) |
| Noise: | < 65dB | Protection Level: | IP30 |
| Insulation (Input-Output): | >2.5kV | Electrical Safety Protection: | Over Voltage, Under Voltage, Over Current, Short Circuit |
| High Light: | 30kW DC fast charger station,wall mounted CCS2 EV charger,one-click start GBT charger |
||
Wall Mounted DC EV Charger 30kW CCS2 GBT One-Click Start IP30

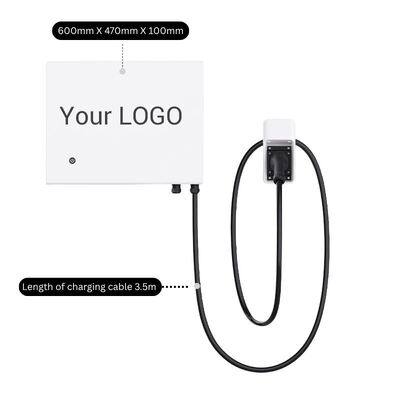

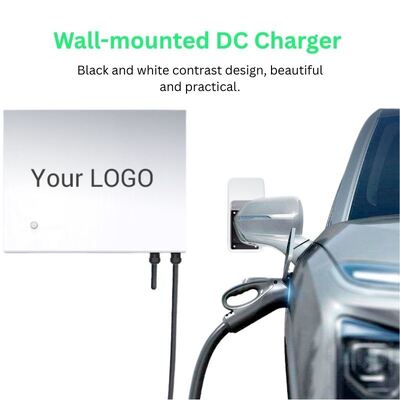

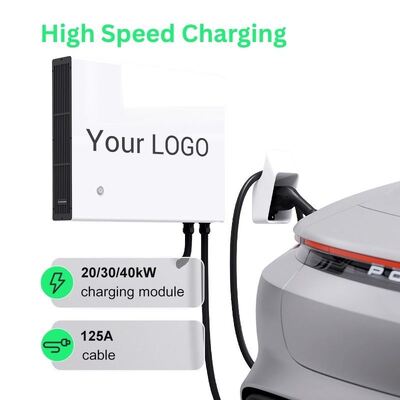

Elevate your EV charging experience with this sleek wall-mounted DC fast charger, combining modern black-and-white contrast aesthetics with practical, high-performance engineering. Designed for seamless integration in garages, parking lots, or commercial spaces, its ultra-slim profile (just 100mm deep) and lightweight build (25-28kg) make installation effortless while delivering powerful 20kW, 30kW, or 40kW output options.

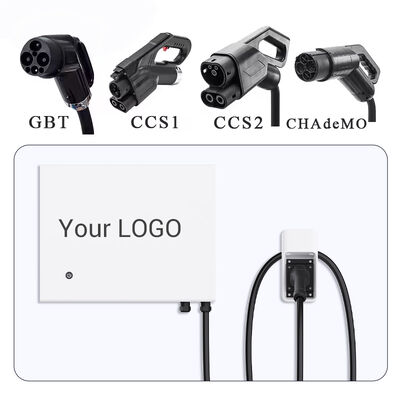

Enjoy convenient one-click operation: simply long-press the power button for 2 seconds to start, and short-press to shut down. The integrated gun holder keeps the 3.5m charging cable (extendable to 5m or 7m) neatly organized, eliminating clutter. Multiple connector standards—GBT, CCS1, CCS2, and CHAdeMO—ensure broad vehicle compatibility, with a robust 125A cable for high-speed charging.

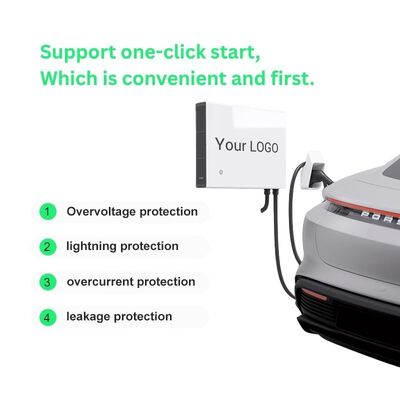

Safety is prioritized with built-in protections against overvoltage, lightning, overcurrent, leakage, short-circuit, and more. Operating efficiently (≥94% full load) with power factor >0.98, it performs reliably in extreme conditions from -30°C to 75°C and up to 3000m altitude.
Key Features
- Extreme simplicity: One-key start/stop, minimal fault rate

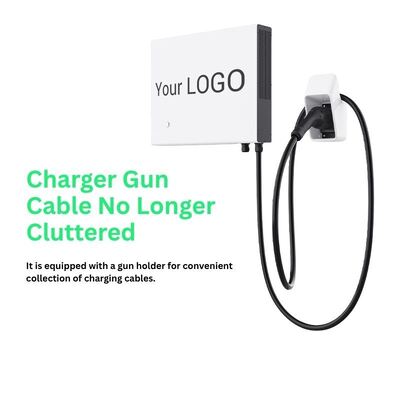

- Tidy design: Dedicated holder for charging gun and cable
- Versatile: Supports major global protocols (GBT 18487/27930, ISO 15118, IEC 61851, SAE J1772, CHAdeMO 1.2/2.0, NACS)
- Quiet and durable: <65dB noise, wind-cooled, IP30 protection
Technical Specifications
| Power Options | 20kW, 30kW, 40kW modules |
|---|---|
| Supported Connectors | GBT, CCS1, CCS2, CHAdeMO (Tesla/NACS optional) |
| Operation | Long-press power button (2 seconds) to start; short-press to stop |

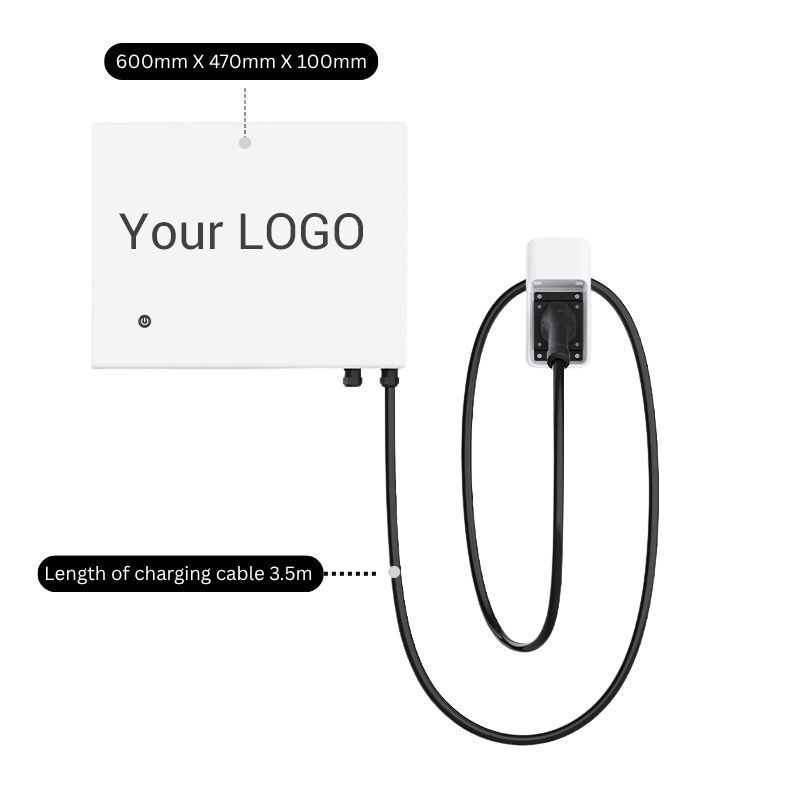

| Dimensions | Ultra-slim profile (100mm depth) |
| Weight | 25-28kg |
| Cable Length | 3.5m standard (extendable to 5m or 7m) |
| Current Rating | 125A cable |
| Efficiency | ≥94% full load efficiency |
| Power Factor | >0.98 |
| Operating Temperature | -30°C to 75°C |
| Altitude Rating | Up to 3000m |
| Noise Level | <65dB |
| Protection Rating | IP30 |
Frequently Asked Questions
What power options are available?
Which EV connectors are supported?
How do I start and stop charging?
Is installation complicated?
What safety features are included?
