OCPP 1.6J Smart Wall-mounted DC EV Charger 20-40kW IP54 Waterproof with RFID & CCS2/GB/T
| MOQ: | 10 |
| Price: | 2000-5000 |
| Standard Packaging: | Wooden boxes |
| Delivery Period: | 5-10 days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 100/week |
OCPP 1.6J DC EV charger 20-40kW
,wall-mounted DC fast charger IP54
,smart EV charger with RFID CCS2
OCPP 1.6J Smart Wall-mounted DC EV Charger 20-40kW IP54 Waterproof with RFID & CCS2/GB/T
Meet the future of electric vehicle charging with our smart Wall-mounted DC EV Charger. This 20-40kW station is OCPP 1.6J certified, enabling seamless integration with any major charging network and management system. Featuring Over-the-Air (OTA) updates, smart charging capabilities, and optional RFID/Credit Card payment, it delivers a powerful, flexible, and user-friendly charging solution for both commercial and residential applications. Its compact, IP54 waterproof design ensures easy installation and reliable operation in various environments.
Product Features & Advantages:
-
Smart & Connected: OCPP 1.6J protocol support allows for remote monitoring, smart charging sessions, and integration into existing networks. Enjoy features like remote restart, configurable power settings, and FRU onboard diagnostics for easy servicing.
-

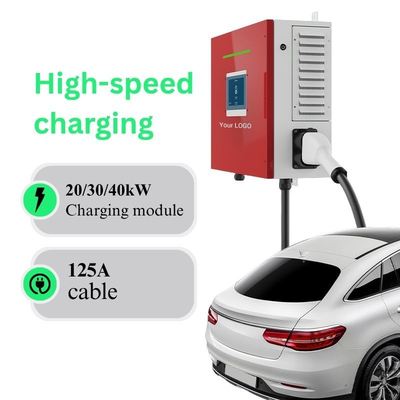

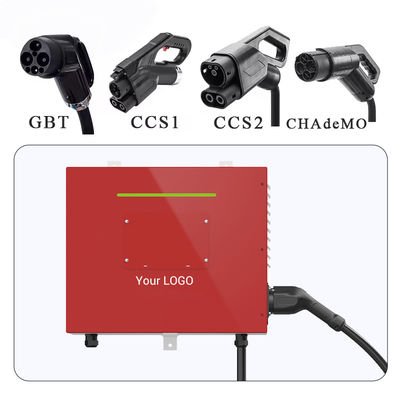

High-Speed Flexible Charging: Choose from 20kW, 30kW, or 40kW power modules to match your needs. Compatible with major global standards including CCS1, CCS2, CHAdeMO, and GB/T, ensuring it works with a wide range of electric vehicles.
-

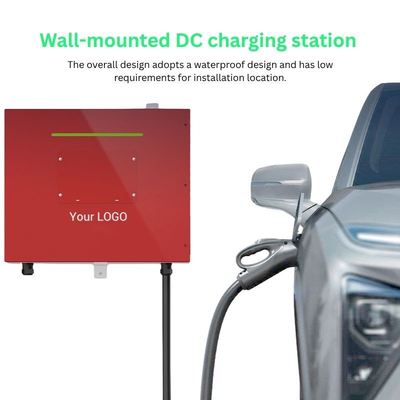

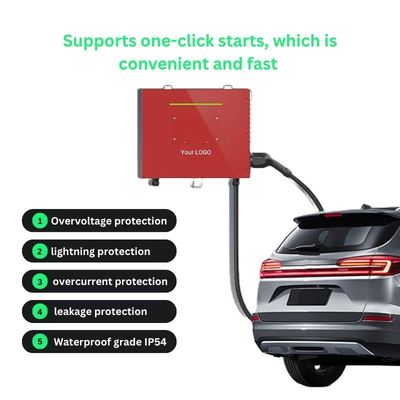

Robust Safety & Design: The IP54 waterproof rating and comprehensive protection system (overvoltage, lightning, overcurrent, leakage) guarantee safe operation outdoors and in all weather conditions.
-
User-Centric Convenience: Supports one-click start for immediate charging. The optional RFID or credit card reader provides secure access and flexible payment options for commercial use.
-

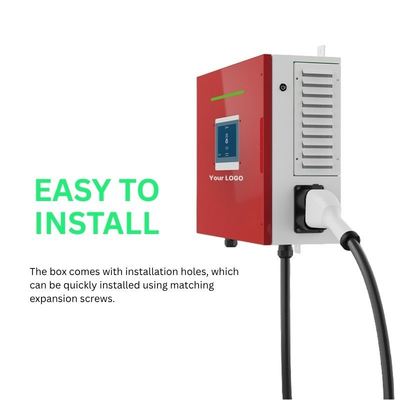

Easy Installation & Service: Pre-fitted installation holes with matching expansion screws allow for quick and straightforward wall-mounting. The modular design and onboard diagnostics make maintenance simple and efficient.
Technical Specifications
| Product Number | WY-20kW, 30kW, 40kW |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) || 50/60Hz |
| Output Voltage | 200 - 1000VDC |
| Max Current | 50A, 80A,120A |
| Parallel Charge Mode (Optional) | 1* 20 kW per Port, 1* 30 kW per Port, 1* 40 kW per Port |
| Efficiency | ≥94% at nominal output power |
| Power factor | ＞0.98 |
| Operating temperature | -30°C to 80°C |
| Altitude | < 2000m |
| AC Input Cable and Switch | 5*6mm² (L1,L2,L3,N,PE) 63A |
| Display | 7’’ LCD with touch screen(Internal installation) |
| Ingress Protection | IP54 || IK10 |
| Dimensions (L x D x H) | 570mm*470mm*210mm |
| Ingress Protection | IP54 || IK10 |
| Power Electronics Cooling | Air Cooled |
| Weight | 38kg for 20W, 40kg for 30W, 48kg for 40W |
| Insulation (input - output) | ＞2.5kV |
| Regulatory Compliance | CE || EMC: EN 61000-6-1:2007, EN 61000-6-3:2007/A1:2011/AC:2012 and GB/T 20234 GB/T 18487 GB/T 27930 |
| Charging Protocol Standards | Mode 4 - IEC-61851, ISO-15118, DIN 70121 also Mode 4 – case C |
| Length of charging cable | 3m |
| Communication protocol | OCPP 1.6J |
| Access Control | RFID: ISO/IEC 14443A/B (Optional) |
| Communication | Ethernet – Standard || 3G/4G Router |
| Electrical Safety General | Over Voltage, Under Voltage, Over Current |
| Electrical Safety: Output Short | Output power disabled when output is short circuited |
| Electrical Safety Temperature | Temperature Sensors @ Charge Coupler and Power Electronics |
| Emergency Stop | Emergency Stop Button Disables Output Power |
Application & Usage:
Ideal for a wide array of applications, including public charging stations, commercial fleets, hotel and shopping center facilities, and residential complexes. Its smart features make it perfect for operators looking to manage a network, while its robust design ensures reliability for daily use.
Support and Service
To ensure the smooth progress of your project, HUIJIE not only provides high-quality products (charging piles, adapters and charging plugs, etc.), but also provides comprehensive technical support and service guarantees:
Technical Support
Provide product selection guidance to help you choose the most suitable model according to the application scenario
Support drawing confirmation, sample testing and customized solutions
A professional engineer team responds to your technical consultation and application issues 24 hours a day 7 days a week
After-sales service
All products enjoy standard warranty service (usually 12-24 months)
Regular return visits and usage tracking to help you optimize the use of the system
Certification and Compliance
The products comply with international mainstream certification standards (such as CE, ROHS, TUV FCC, etc.)
Can cooperate to complete third-party testing or certification data support according to project requirements
Customized service
Provide multi-dimensional customized support such as structure, parameters, LOGO and packaging
Quick proofing and short-term delivery
(FAQ)
1. What does OCPP 1.6J support mean for me as an operator?
-
It means you can connect this charger to almost any central management system (CMS) or charging network software. This allows for remote control, user management, payment processing, and monitoring of your charger's status and performance from a single platform.
2. Can I upgrade the charger's software after installation?
-
Yes. Thanks to the Over-the-Air (OTA) update feature, the charger's firmware can be updated remotely without needing a technician on-site, ensuring your unit always has the latest features and security patches.
3. What is the difference between the 20kW, 30kW, and 40kW models?
-
The primary difference is charging speed. A 40kW model will charge a vehicle significantly faster than a 20kW model. You can select the power level that best balances your budget and the required charging speed for your location.
