Wall Mounted DC EV Charger 40kW High Speed One-Click Start Gun Holder

Name: Wall Mounted DC EV Charger 40kW High Speed One-Click Start Gun Holder
Brand: Sichuan Huijie Green Power Technology CO.,Ltd
SKU: WY-20kW / 30kW / 40kW
Availability: InStock

Key Attributes

Brand Name:Huijie

Model Number:WY-20kW / 30kW / 40kW

Place of Origin:China

Minimum Order Quantity:50

Supply Ability:100/week

Delivery Time:5-10 Days

Payment Terms:L/C,D/A,D/P,T/T,Western Union

Standard Packaging:Wooden Box

Product Summary

Wall Mounted DC EV Charger 40kW High Speed One-Click Start Gun Holder Discover premium fast charging with this slim wall-mounted DC EV charger, featuring striking black-and-white contrast design for modern aesthetics and practical performance. Its ultra-compact dimensions (600×470×100mm, 25-28kg) ...

Product Details

Highlight:

40kW wall mounted EV charger

high speed DC EV charger

one-click start EV gun holder

Input Voltage: 380 VAC/400VAC(3P+N+PE)|50Hz

Output Voltage: 200-750VDC

Maximum Output Current (Default): 50A (Chdemo Is 37A)/80A

Nozzle Standard: GBT/CCS1/CCS2/CHAdeMO/Tesla

Charging Module Type: 20kW/ 30KW

Effidengy: 294% Full Load

Power Factor: >.98

Working Temperature: -30Cto 75C

Altitude: <3000m

Operating |Storage Humidity: 95% RH 99% RH(Non-condensing)

Input Cable And Switch: 3*6 Mm2+2*4mm2 1m 40A/3*10mm2+2*6mm2 1m 63A

Weight: 25kg/ 28kg

Dimensions (Lx Wx H): Length 600 Mm X Width 470 Mm X Depth 100mm

Installation Method: Wallpaper Installation

Start Method: Press And Hold The Power Button For 2 Seconds To Start

Shutdown Method: Short Press Power Button, Stop For 2 Seconds

Cooling Method: The Wind Is Cold.

Supported Protocol Standards: GBT 18487&GBT 27930/ISO 15118/IEC61851/SAEJ1772/CHAdeMO1.2 & CHADEMO2.0/ NACS, EtC.

Charging Gun Length: 3.5m/5m/7m (optional)

Noise: <65dB

Protection Level: IP30

Insulation (Nput -Output): >2.5kV

Electrical Safety Protection: Orervoltage, Undervoltage,Overcurrent,Short Circult

Product Description

Detailed Specifications & Features

Wall Mounted DC EV Charger 40kW High Speed One-Click Start Gun Holder

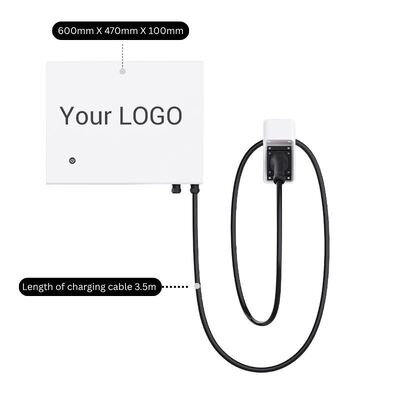

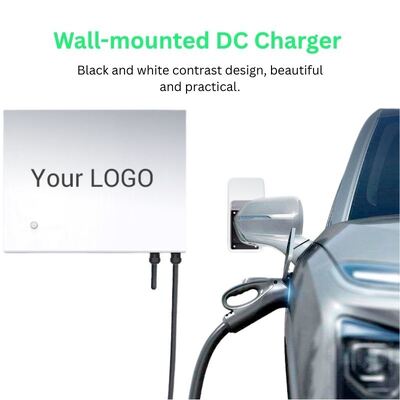

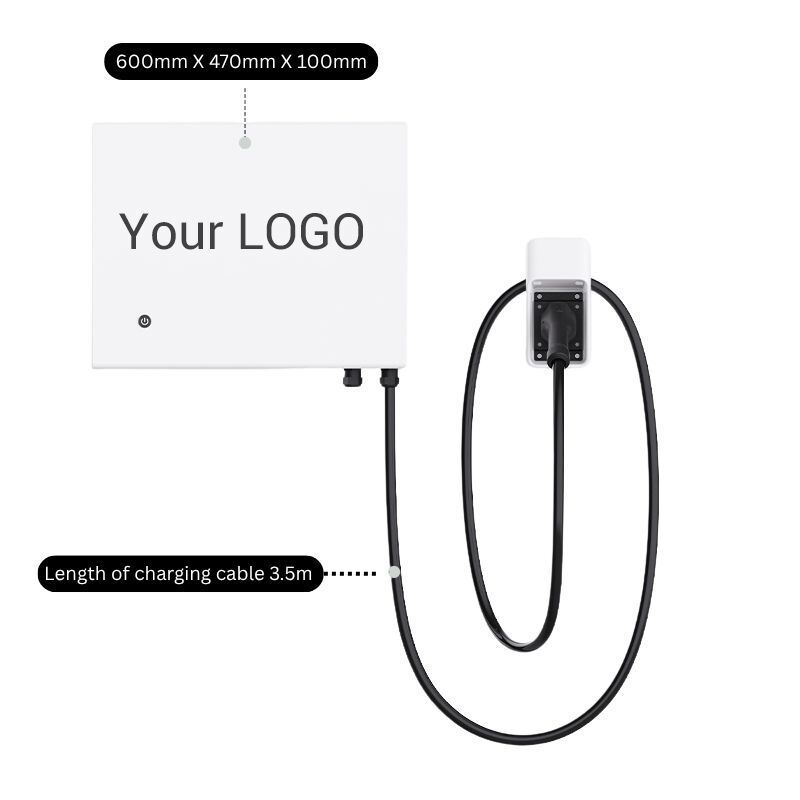

Discover premium fast charging with this slim wall-mounted DC EV charger, featuring striking black-and-white contrast design for modern aesthetics and practical performance. Its ultra-compact dimensions (600×470×100mm, 25-28kg) enable effortless wall installation in homes, offices, or parking areas, delivering 20kW, 30kW, or 40kW output for rapid EV replenishment.

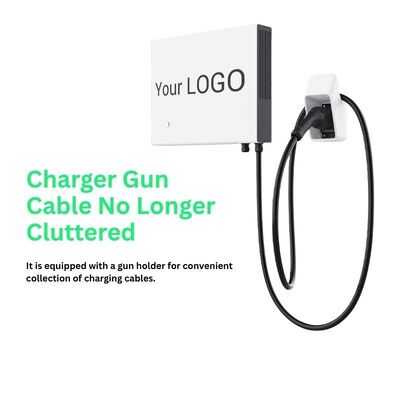

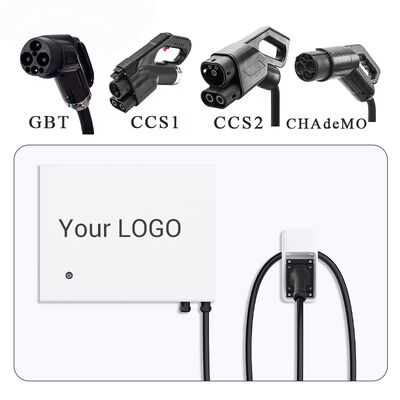

One-click convenience sets it apart: long-press the power button (2 seconds) to start, short-press to stop—no complex apps needed. The integrated gun holder keeps the 3.5m cable (optional 5m/7m) tidy and clutter-free, while multiple standards (GBT, CCS1, CCS2, CHAdeMO, Tesla) ensure universal compatibility.

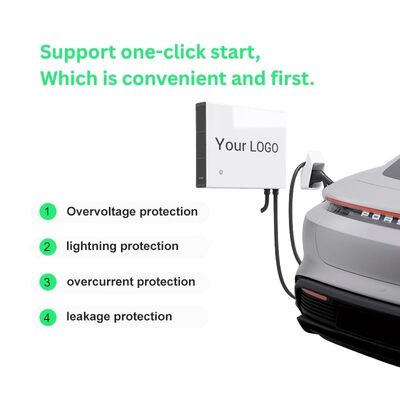

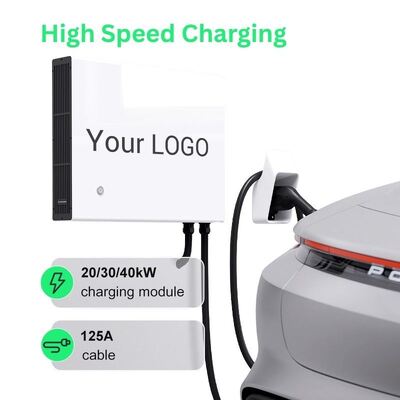

High-speed charging reaches up to 125A with ≥94% efficiency and >0.98 power factor, supported by wind cooling for quiet <65dB operation. Comprehensive safety includes overvoltage, lightning, overcurrent, leakage, undervoltage, and short-circuit protections, plus >2.5kV insulation.

Key Advantages

Extreme simplicity: Minimal fault rate, plug-and-play operation
All-weather reliable: -30°C to 75°C operation, <3000m altitude
Versatile protocols: GBT 18487/27930, ISO 15118, IEC 61851, SAE J1772, CHAdeMO 1.2/2.0, NACS

Wall Mounted DC EV Charger 40kW showing sleek black and white design with integrated cable management

Frequently Asked Questions

What power levels are available?

20kW, 30kW, or 40kW modules for flexible high-speed charging.

Which connectors does it support?

GBT, CCS1, CCS2, CHAdeMO, and Tesla/NACS standards.

How does one-click start work?

Long-press power button (2s) to start; short-press (2s) to stop.

Is the cable management included?

Yes—built-in gun holder prevents clutter and simplifies storage.

What safety protections are there?

Overvoltage, lightning, overcurrent, leakage, undervoltage, short-circuit.
