20-40kW High Speed Compact Wall-mounted DC Fast Charger Station with Multi-Protection Cable Holder
| MOQ: | 10 |
| Price: | 2000-5000 USD |
| Standard Packaging: | Wooden boxes |
| Delivery Period: | 5-10 days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 100/week |
20-40kW wall-mounted DC fast charger
,compact DC fast charger station
,multi-protection DC fast charger cable holder
Compact Wall-mounted DC EV Charger 20-40kW High Speed with Multi-Protection & Cable Holder
This compact Wall-mounted DC EV Charger combines a sleek black and white design with high-performance 20-40kW rapid charging. Engineered for both convenience and safety, it features an integrated gun holder to keep your 3.5-meter cable organized and a one-touch start function for immediate use. Its robust protection system ensures complete peace of mind during every charging cycle.
Product Features & Advantages:

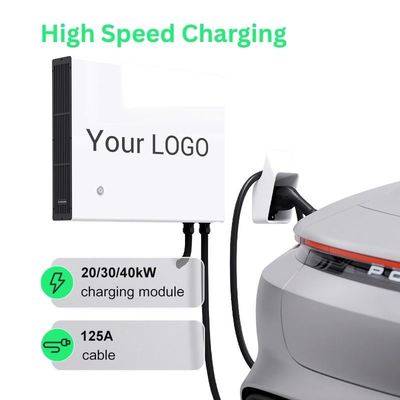

High-Speed DC Charging: Equipped with a powerful 20/30/40kW charging module, this station significantly reduces charging time, getting you back on the road faster.

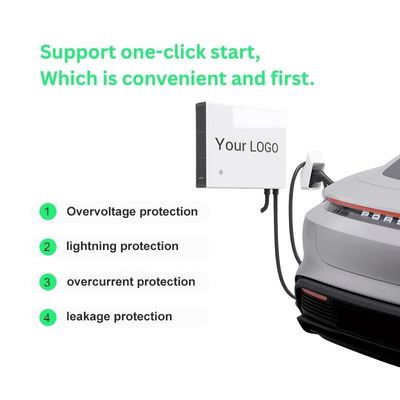

Comprehensive Safety System: Built-in protection mechanisms guard against overvoltage, lightning surges, overcurrent, and leakage, ensuring the safety of both the vehicle and the user.

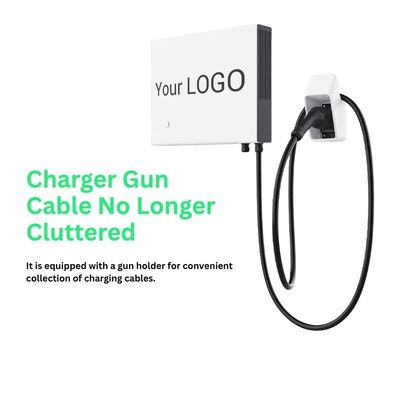

Organized & User-Friendly: The included dedicated gun holder prevents cable clutter, while the one-click start function makes operation simple and intuitive for all users.

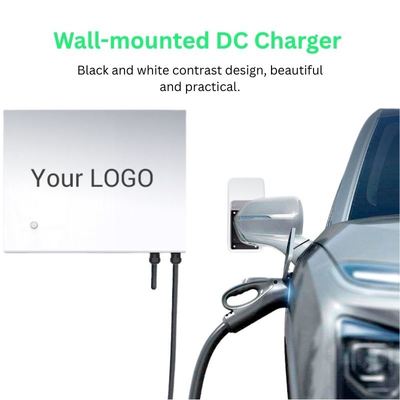

Sleek & Compact Design: With modern black and white contrast styling and dimensions of 600x470x100mm, this charger saves space and enhances any installation environment, from homes to commercial car parks.
Durable Construction: Designed for longevity and reliable performance in various conditions.
Technical Specifications:
| Product Model | WY-20kW/30KW/40KW |
| Input voltage | 380VAC /400VAC(3P+N+PE) || 50Hz |
| Output voltage | 200 - 750VDC |
| Maximum output current (default) | 50A (Chdemo is 37A) / 80A |

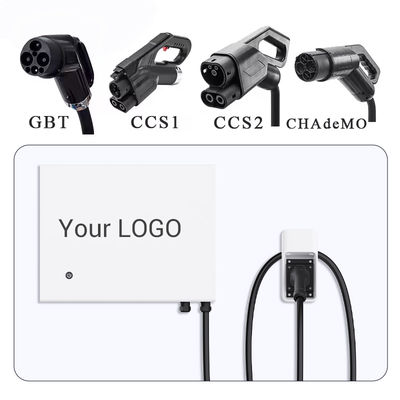

| Gunhead Standard | GBT/CCS1/CCS2/CHAdeMO/Tesla |
| Charging module type | 20kW / 30KW |
| efficiency | ≥94% Fully loaded |
| Power factor | ＞0.98 |
| Operating Temperature | -30°C to 75°C |
| Altitude | < 3000m |
| Operating/Storage Humidity | ≤ 95% RH || ≤ 99% RH (non-condensing) |
| Input cables and switches | 3*6mm²+2*4mm² 1m 40A / 3*10mm²+2*6mm² 1m 63A |
| Weight | 25kg / 28kg |
| Dimensions (L x D x H) | 600mm (L) x 470mm (W) x 100mm (D) |
| Installation Method | Wall-mounted installation |
| Start-up Method | Press and hold the power button for 2 seconds to start. |
| Shutdown Method | Press the power button briefly for 2 seconds to stop. |
| Cooling Method | air-cooled |
| Supported Protocols | GBT 18487 & GBT 27930 / ISO 15118 / IEC 61851 / SAE J1772 / CHAdeMO1.2 & CHAdeMO 2.0 / NACS Standards |
| Charging Gun Length | 3.5m / 5m / 7m(Optional) |
| Noise | ＜65db |
| Protection Rating | IP30 |
| Insulation (input-output) | ＞2.5kV |
| Electrical Safety Protection | Overvoltage, undervoltage, overcurrent, short circuit |
Application & Usage:
Ideal for residential complexes, commercial parking lots, and fleet charging stations. This wall-mounted DC charger provides a reliable and fast charging solution for a wide range of electric vehicles, supporting the growing infrastructure for sustainable transportation.
Support and Service
To ensure the smooth progress of your project, HUIJIE not only provides high-quality products (charging piles, adapters and charging plugs, etc.), but also provides comprehensive technical support and service guarantees:
Technical Support
Provide product selection guidance to help you choose the most suitable model according to the application scenario
Support drawing confirmation, sample testing and customized solutions
A professional engineer team responds to your technical consultation and application issues 24 hours a day 7 days a week
After-sales service
All products enjoy standard warranty service (usually 12-24 months)
Regular return visits and usage tracking to help you optimize the use of the system
Certification and Compliance
The products comply with international mainstream certification standards (such as CE, ROHS, TUV FCC, etc.)
Can cooperate to complete third-party testing or certification data support according to project requirements
Customized service
Provide multi-dimensional customized support such as structure, parameters, LOGO and packaging
Quick proofing and short-term delivery
1. What electric vehicles are compatible with this DC charger?
Our Wall-mounted DC EV Charger is compatible with most electric vehicles that support DC fast charging, typically via CCS, CHAdeMO, or GB/T standards depending on your region and order configuration. Please check your vehicle's charging port type before purchasing.
2. What are the installation requirements for this charger?
This charger requires professional installation by a qualified electrician. It needs a 3-phase AC 380V power supply and should be mounted on a sturdy wall. We recommend consulting with an installer to assess your location's suitability.
3. How long does it take to fully charge an average EV?
Charging time varies based on your vehicle's battery capacity and the charger's power output. For example, using the 40kW model, an EV with a 60kWh battery could be charged from 20% to 80% in approximately 45-60 minutes.
