30kW Wall-Mounted DC EV Charger with IP54 Protection and Fast Charging Capability
| MOQ: | 50 |
| Price: | 2000-5000 |
| Standard Packaging: | Wooden boxes |
| Delivery Period: | 5-10 days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 100/week |
Detail Information
Place of Origin
China
Brand Name
HUIJIE
Certification
CE
Model Number
HJ-02C
Power Options:
30kW
Dimensions (LxDxH):
570 X 210 X 470 Mm
Weight:
40 Kg
Mounting:
Wall-mounted With Pre-drilled Holes
Protection Rating:
IP54
Supported Standards:
GB/T, CCS1, CCS2, CHAdeMO, NACS
Cable Length:
3.5 Meters
Input Voltage:
400VAC (3P+N+PE)
Input Frequency:
50/60 Hz
Output Voltage Range:
200 - 1000 VDC
Max Output Current:
125A
Efficiency:
Peak Efficiency ≥96%
Power Factor:
>0.98
Display:
7-inch LCD Touch Screen
Communication Protocol:
OCPP 1.6J
Connectivity:
Ethernet (Standard), 3G/4G Modem (Optional)
Operating Temperature:
-30°C To +75°C
Cooling Method:
Air Cooled
Protection Features:
Overvoltage, Lightning, Overcurrent, Leakage, Waterproof
Highlight:
30kW DC EV Charger
,IP54 DC Fast Charger Station
,3.5m Cable Wall-Mounted EV Charger
Product Description

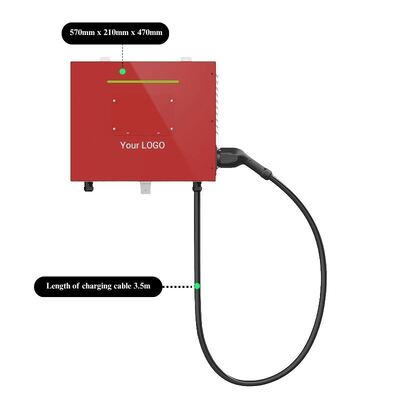

30kW Wall-Mounted DC EV Charger Compact IP54 Fast Charging Station with 3.5m Cable
Experience the perfect blend of simplicity, performance, and value with our 20-40kW Wall-Mounted DC EV Charger. Designed for cost-conscious commercial and residential applications, this ultra-compact charger delivers reliable fast DC charging in a minimalist, space-saving form factor. With pre-drilled installation holes and included expansion screws, setup is quick and straightforward. Its IP54 waterproof design ensures dependable outdoor performance with minimal site preparation. Choose from 20kW, 30kW, or 40kW power modules to perfectly match your charging needs and budget.
Product Features & Advantages
- Ultra-Compact & Space-Saving: With dimensions of just 570 x 210 x 470mm and weighing only 40kg, this wall-mounted unit occupies minimal space, making it ideal for garages, parking lots, and locations where floor space is limited.
- Tool-Free Rapid Installation: The chassis comes pre-fitted with mounting holes. Using the matching expansion screws (included), a single installer can securely mount the charger to any sturdy wall surface in minutes, significantly reducing installation time and cost.
- All-Weather IP54 Protection: The sealed enclosure is rated IP54, providing robust protection against dust ingress and water splashes from any direction. This allows for flexible outdoor installation without the need for additional shelters.
- Flexible Power Configuration: Available in three power variants (20kW, 30kW, and 40kW) with output voltage from 200-1000VDC and current up to 125A. Select the model that best balances charging speed with your site's electrical capacity.
- Smart & Network-Ready: Fully OCPP 1.6J compliant for seamless integration with major charging network platforms. Features a user-friendly 7-inch touchscreen display, Ethernet connectivity (with optional 3G/4G), and comprehensive safety protections.
Applications & Usage
This versatile charger is perfect for a wide range of settings:
- Commercial Properties: Retail stores, hotels, restaurants offering customer charging.
- Workplace Charging: Employee parking at offices and industrial facilities.
- Residential Complexes: Apartment buildings and gated communities.
- Fleet Operations: Light commercial vehicle and corporate fleet depots.
- Destination Charging: Tourist attractions, event venues, and public parking structures.
FAQ
How long does it take to install this charger?
Typically 30-60 minutes for a qualified electrician. The pre-drilled mounting holes and included expansion screws simplify wall attachment. Electrical connection time depends on site wiring.
Can it be installed outdoors without a cover?
Yes. The IP54 rating means it's protected against dust and water splashes, making it suitable for direct outdoor installation in all weather conditions.
What's the difference between 20kW, 30kW, and 40kW versions?
Charging speed. A 40kW charger will charge a compatible EV roughly twice as fast as a 20kW unit. Choose based on your desired charging time and available grid capacity.
Does it support all electric vehicle types?
It supports major global standards (GB/T, CCS1, CCS2, CHAdeMO, NACS). Please specify your required connector when ordering.
Is the 7-inch touchscreen easy to use?
Yes. The intuitive interface guides users through the charging process, displays real-time charging data (power, time, energy), and shows system status clearly.
