CCS2 to NACS EVSE Chargers Adapters Plug 300V 250A DC Fast Charging Station
| MOQ: | 1 |
| Standard Packaging: | carton box |
| Delivery Period: | 3-7days |
| Payment Method: | LC, T/T, D/P, PayPal, Western Union |
| Supply Capacity: | 5000 per week |
CCS2 to NACS EVSE Chargers
,300V EVSE Chargers
,300V nacs to ccs adapter
CCS2 to NACS Charger Adapter Plug 250A DC Fast Charging Station
Unlock Ultra-Fast Cross-Standard Charging — Safe, Powerful, and Future-Ready
The CCS2 to NACS 250A DC Fast Charger Adapter Plug is a state-of-the-art adapter designed to connect CCS2 (European standard) DC charging stations to electric vehicles equipped with the North American Charging Standard (NACS, also known as Tesla standard). Supporting up to 250A and 1000V, this adapter enables ultra-fast charging, seamless cross-standard compatibility, and future-proof flexibility for global EV fleets and public charging stations.
Product Introduction
Product Parameters
| Parameter | Specification |
| Input Standard | CCS2 DC |
| Output Standard | NACS DC |
| Rated Voltage | 300V–1000V DC |
| Rated Current | Up to 250A |
| Max Power | Up to 250kW |
| Operating Temp. | -30°C to +55°C |
| Protection Level | IP67 |
| Flame Safety | UL94 V-0 flame retardant |
| Insulation Resistance | >500MΩ (DC 1000V) |
| Contact Resistance | ≤0.5mΩ |
| Cable Length | 0.5m–1m (customizable) |
| Housing Material | High-strength PC+ABS |
♦The above parameters are standard parameters, and we can also provide parameter customization services.
Product Core Advantages
✅ Supports High-Power DC Fast Charging — Up to 250A, 1000V
Delivers rapid DC charging with high current up to 250A and voltage up to 1000V, enabling ultra-fast energy replenishment.
✅ CCS2 to NACS Compatibility
Allows European CCS2 DC chargers to serve EVs using the NACS port, including Tesla and other future NACS-equipped vehicles.
✅ Wide Voltage Range — 300V to 1000V
Compatible with most modern high-voltage battery systems, perfect for next-generation long-range EVs.
✅ Sealed Waterproof & Dustproof — IP67 Rated
Built for outdoor conditions, ensuring stable and safe charging performance in rain, snow, or dusty environments.
✅ Flame-Retardant Housing — UL94 V-0 Certified
High-grade flame-retardant enclosure minimizes fire hazards and ensures long-term operational reliability.
✅ Advanced Multi-Level Safety Protections
Features protection against overcurrent, overvoltage, short circuit, leakage, and overheating, meeting strict safety standards.
✅ Energy-Efficient Conductor Design
Optimized internal conductors and advanced heat dissipation reduce energy loss and improve overall efficiency.
✅ High-Quality Contacts
Silver-plated copper alloy contacts ensure superior conductivity and low resistance, extending service life.
✅ Portable & Plug-and-Play
Compact, lightweight, and easy to carry — requires no additional configuration. Simply connect and charge.

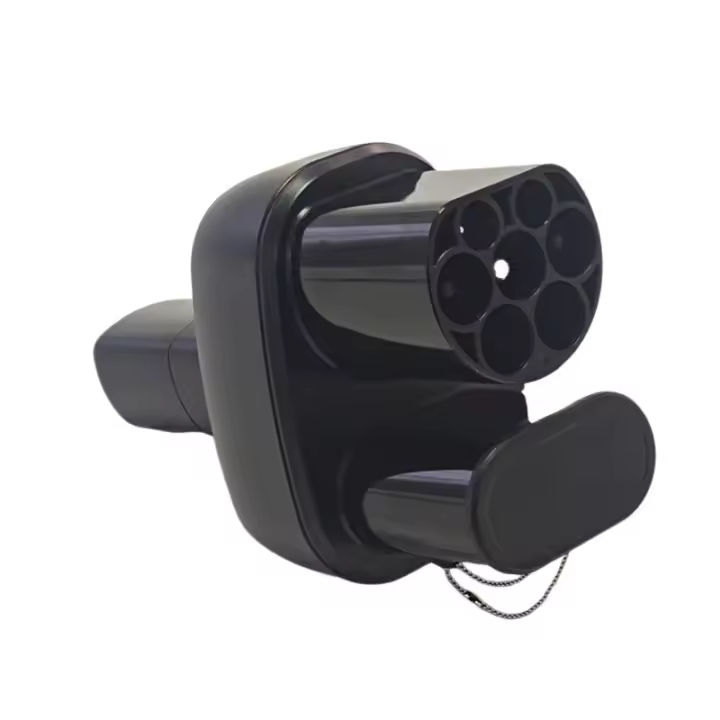

Product Details
♦The appearance dimensions can provide customized socket shapes.
Application Scenarios
- Public DC fast charging stations requiring support for NACS-equipped EVs
- Cross-border or cross-standard EV fleet operations
- Rental or corporate fleets incorporating multiple EV charging standards
- Multi-standard public or private EV charging infrastructure
- Automotive R&D centers, test facilities, and demonstration fleets
- Charging service operators expanding to support NACS/Tesla vehicles
Contact the technical team now to get exclusive support!
Advantages of Our CCS2 to NACS EV Charging Adapter
- Future-ready standard: Seamlessly supports NACS (Tesla) adoption globally.
- High-speed capability: Up to 250kW DC, significantly reducing EV downtime.
- Superior safety: Flame-retardant, waterproof, and equipped with full electrical protections.
- Energy-efficient performance: Low resistance design minimizes energy loss and heat generation.
- Universal use: One solution for connecting CCS2 chargers to NACS EVs, maximizing utilization.
- Plug-and-play simplicity: No software configuration or additional tools required.
Frequently Asked Questions (FAQs)
Q1: Can this adapter be used outdoors in extreme weather?
A: Yes. The IP67 rating and UL94 V-0 flame-retardant housing make it ideal for reliable use in rain, snow, and dusty environments.
Q2: Is it compatible with all NACS-equipped EVs?
A: Yes. It supports all vehicles using the NACS DC charging port, including Tesla models and future NACS vehicles.
Q3: What is the maximum power it supports?
A: Up to 250kW DC (250A at 1000V), depending on the charging station capabilities.
Q4: Do I need to install software or perform additional setup?
A: No. It is a fully plug-and-play solution — simply connect and start charging.
Looking to enable ultra-fast, cross-standard EV charging for your station or fleet?
Contact us today for wholesale pricing, OEM/ODM services, and technical consultation.
