RoHS 240V GBT To CCS1 DC Car EVSE Chargers Adapters Connector Converter
| MOQ: | 1 |
| Standard Packaging: | carton box |
| Delivery Period: | 3-7days |
| Payment Method: | LC, T/T, D/P, PayPal, Western Union |
| Supply Capacity: | 5000 per week |
RoHS EVSE Chargers
,EVSE Chargers Converter
,RoHS 240v car adapter
GBT to CCS1 DC Charger Adapter | EV Charging Connector Converter
Seamlessly Connect GBT EVs to CCS1 Charging Stations in North America
This GBT to CCS1 DC charging adapter is a high-performance connector accessory designed for cross-standard EV charging. It enables electric vehicles with GBT (GB/T 20234.3) DC charging inlets to be safely and reliably charged at CCS1 (Combo 1) DC charging stations, widely used across North America.
Perfect for vehicle exports, fleet conversions, and global charging deployments, this adapter ensures secure compatibility, high current transmission, and safety compliance for high-power DC charging scenarios.
Product Introduction
Product Parameters
| Parameter | Value |
| Interface Standard | GBT |
|
Output Connector
|
CCS1
|
|
Rated Voltage
|
Up to 1000V DC
|
|
Rated Current
|
Up to 250A DC (customizable)
|
|
Contact Resistance
|
≤ 0.5mΩ
|
|
Insulation Resistance
|
>1000MΩ (DC 500V)
|
|
Operating Temperature
|
-30°C ~ +55°C
|
|
Protection Rating
|
IP54 (charging state)
|
|
Cable Length
|
Optional: 0.5m / 1m / 2m
|
|
Certifications
|
CE, RoHS (UL optional) |
♦The above parameters are standard parameters, and we can also provide parameter customization services.
Product Core Advantages
✅ Cross-Standard Compatibility (GBT to CCS1)
Enables Chinese EVs with GBT DC inlet to charge from North American CCS1 DC fast charging stations.

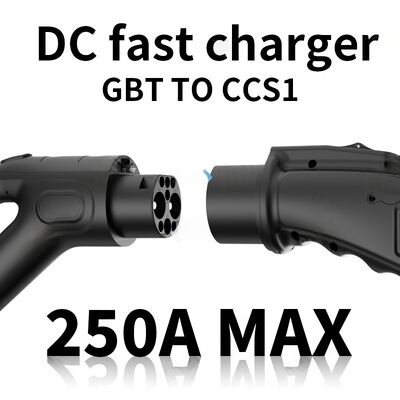

✅ High Power Support – Up to 250A / 1000V DC
Delivers efficient high-speed charging with excellent conductivity and thermal control.
✅ Secure Locking & Stable Contact Design
Mechanically interlocked and low-contact-resistance structure ensures safe and stable power transmission.
✅ Flame-Retardant & Heat-Resistant Housing
Manufactured from UL94 V-0 PC+ABS materials for reliable operation under heat and pressure.

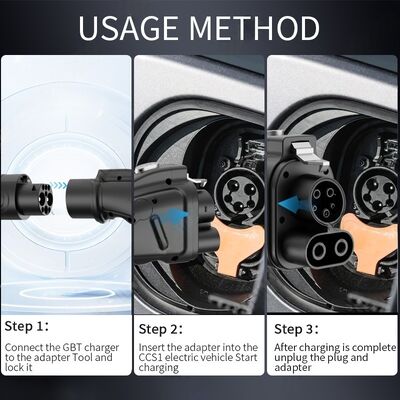

✅ Plug-and-Play Operation
No firmware or software needed—simply connect and charge with zero configuration.
✅ OEM Branding & Custom Housing Available
Support for logo customization, shell design, and special cable configurations for brands or EVSE providers.

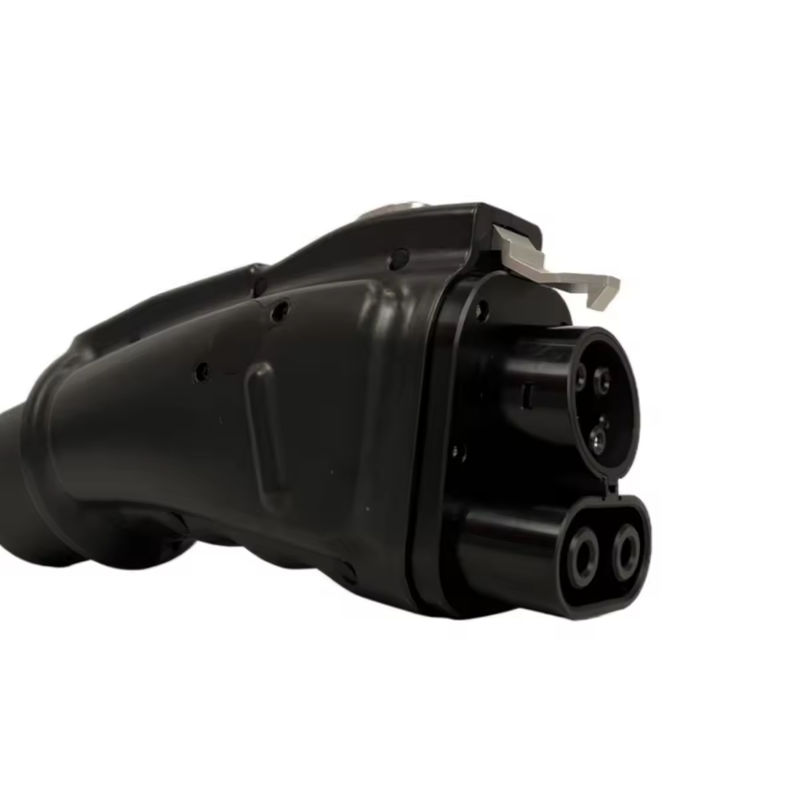

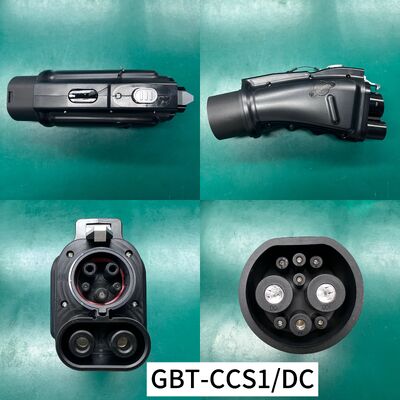

Product Details

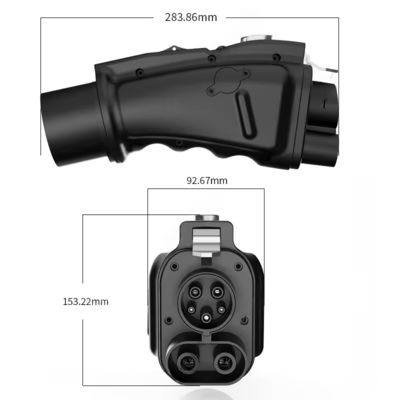

♦The appearance dimensions can provide customized socket shapes.
Application Scenarios
- Exported EVs from China using GBT DC interface
- EV charging infrastructure interoperability projects
- Rental fleet integration with overseas charging networks
- Temporary or mobile GBT-to-CCS1 conversion setups
- EV dealerships and after-sales service for imported vehicles
Contact the technical team now to get exclusive support!
Advantages of of Our GBT to CCS1 Adapter
- Interoperability Across Regions: Easily bridges Chinese EVs with North American DC fast chargers
- High-Power Ready: Up to 250A support ensures quick charging capability
- Engineered for Safety: Flame-retardant materials, locking systems, and low resistance contacts
- Plug-and-Use Convenience: No software or activation required
- OEM Customization: Branding, cable length, or shell shape all customizable for B2B clients
Frequently Asked Questions (FAQs)
Q1: Can I use this adapter for any EV with a GBT DC charging port?
A: Yes. This adapter is compatible with most vehicles using the GB/T 20234.3 standard for DC charging.
Q2: Does this adapter support 250A fast charging?
A: Yes. Standard versions support up to 250A at 1000V DC. For higher current options, please contact us.
Q3: Is this product waterproof?
A: It is IP54 rated while connected, suitable for outdoor charging use under standard conditions.
Q4: Can I print my company’s logo or request a custom design?
A: Absolutely. OEM/ODM services for branding, design, and packaging are available.
Q5: Is any software or setup required to use the adapter?
A: No. This is a fully hardware-based plug-and-play adapter. No configuration needed.
