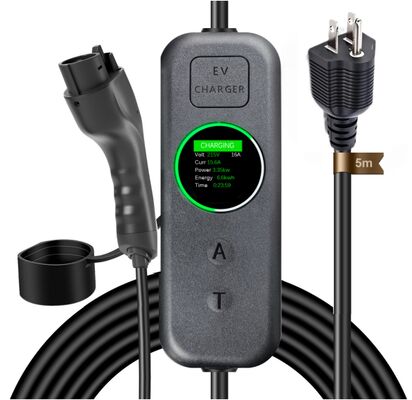

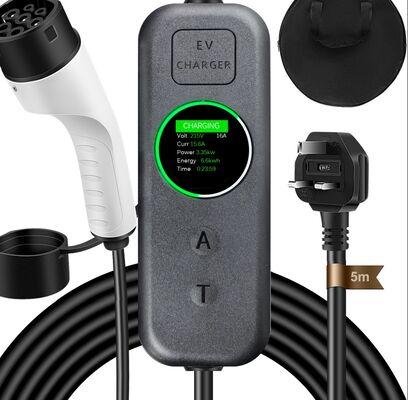

Portable EV Charger with Adjustable 8-32A Current IP66 Rated and Color Screen for Electric Cars
| MOQ: | 100 |
| Standard Packaging: | Regular Box |
| Delivery Period: | 5-10 days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000/week |
Detail Information
Place of Origin
China
Brand Name
Huijie
Connector Standard:
Type2 (IEC 61926-2 Compliant)
Input Voltage:
AC 80-250V (Rated 220V)
Input Frequency:
50-60 Hz
Output Voltage:
AC 220V
Output Current:
Adjustable: 8A, 10A, 16A, 24A, 32A
Maximum Power:
7.04 KW (at 32A)
Display:
Color LCD, 12 Data Items
Protection Rating:
IP66
Operating Temperature:
-30°C To +60°C
Shell Material:
Flame Retardant Nylon
Cable Length:
5 Meters
Safety Features:
Leakage, Over/Under Voltage, Over/Under Temperature, Lightning, Overload, Overcurrent, Grounding
Special Functions:
Breathing Light, Reservation Charging, Timed Charging, Statistics Saving, Manual Reset
Highlight:
Adjustable 8-32A Portable EV Charger
,IP66 Rated AC Fast Charging Station
,Color Screen Type2 EV Charger
Product Description
Portable Type2 AC EV Charger 8-32A Adjustable IP66 Color Screen with Temperature Control
Experience the future of convenient and safe electric vehicle charging with our advanced Portable Type2 AC EV Charger. Engineered for both home use and on-the-go charging, this compact yet powerful device delivers reliable performance with a host of smart features. The large, bilingual color screen displays 12 real-time data items including voltage, current, power, energy, and charging time, giving you complete control and transparency.
Key Features & Benefits
- Intelligent Adjustable Current: Choose from 8A, 10A, 16A, 24A, or 32A output to match your socket capacity and charging requirements
- Large Color Touch Screen: 2.4-inch color screen with Chinese/English switch displays 12 key parameters including voltage, current, power, and temperature
- Advanced Temperature Control: Intelligent three-zone temperature management automatically reduces current at 75°C and safely powers off at 85°C
- Comprehensive Safety Protections: Built-in safeguards include leakage protection, over/under voltage, over/under temperature, and grounding protection
- Rugged IP66 Design: Flame-retardant nylon enclosure is dust-tight and protected against powerful water jets
- Smart Features: Breathing light status indicator, plug-and-charge functionality, reservation charging, and multiple statistics saving
Applications & Usage
Ideal for home charging in garages or driveways, travel and road trips with Type2 sockets, emergency backup situations, and workplace charging for employees and visitors.
FAQ
What vehicles are compatible with this charger?
Compatible with all electric vehicles that have a Type2 (IEC 62196-2) charging inlet, standard in Europe and many other regions.
Can I use this charger outdoors?
Yes, the IP66 rating makes it dust-tight and protected against powerful water jets, making it safe for outdoor use even in rain.
How do I adjust the charging current?
Use the dual touch buttons on the color screen to cycle through the 5 current levels (8A, 10A, 16A, 24A, 32A). The display shows the selected current.
Does it support scheduled charging?
Yes, it features reservation and limited-time charging modes, allowing you to set start and end times via the touch screen.
What safety certifications does it have?
Complies with IEC 61926-2 standards and includes 9 protection functions, ensuring safe and reliable operation.
