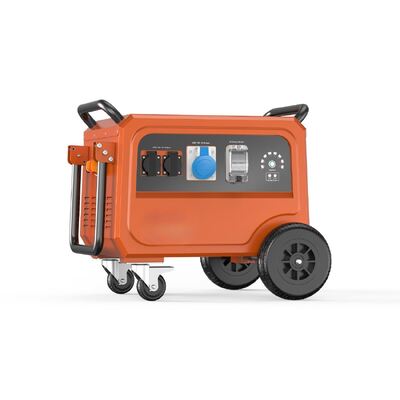

5120Wh Capacity 5000W Pure Sine Wave Output IP54 Rated Portable EV Charger for Industrial Power Station

Name: 5120Wh Capacity 5000W Pure Sine Wave Output IP54 Rated Portable EV Charger for Industrial Power Station
Brand: Sichuan Huijie Green Power Technology CO.,Ltd
SKU: BP500A
Availability: InStock

Brand Name:	Huijie
Model Number:	BP500A
MOQ:	50
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000/Week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Size:

604.8x544x513.4mm

Weight:

About 65KG

Protection Rating:

IP54

Noise Emissions:

<45 DB(A)

Charging Temperature Range:

0℃—45℃

Discharging Temperature Range:

-20℃—45℃

Battery Type:

LFP

AC Waveform:

Pure Sine Wave

Capacity:

5120wh

Rated Output Power:

5000W

150% Overload:

Operation For 600s Possible

200% Overload:

Operation For 100s Possible

250% Overload:

Operation For 15s Possible

Peak Power:

10000W

AC Output:

220V/230V/240V

Max.PV Input Powe:

3600W 120V-430V 18A

Max.AC Input Power:

2500W

Charging Time:

~2Hrs(AC) ~1Hrs(PV)

Packaging Details:

Wooden Box

Highlight:

5120Wh Capacity Portable EV Charger

3600W Pure Sine Wave Output Industrial Power Station

IP54 Rated Portable Power Station

Product Description

BP500P 5120Wh 5000W LFP Portable Power Station

Engineered for mission-critical reliability, the BP500A is a 5.12kWh industrial-grade power station built to deliver robust, clean energy in demanding environments. With a formidable 5000W continuous pure sine wave output and extraordinary 10000W surge capacity, it effortlessly starts and runs heavy-duty tools, professional film equipment, and essential site infrastructure. Its rugged IP54-rated enclosure, LiFePO4 (LFP) battery core, and versatile 2500W solar input make it the definitive power solution for construction, mining, remote media production, and field operations where grid power is unavailable or unreliable.

Key Features & Advantages

Industrial-Grade Power & Durability: Massive 5120Wh LiFePO4 battery delivers 5000W AC output with pure sine wave, safe for sensitive electronics. Rugged chassis with IP54 rating provides dust and water resistance for harsh job sites.
Massive Peak Power for Heavy Loads: Exceptional 10000W peak power handles intense startup surges of industrial motors, compressors, and pumps without faltering.
Robust Overload Capability: Sustains 150% overload (5400W) for 10 minutes, 200% (7200W) for 100 seconds, and 250% (9000W) for 15 seconds for stability under variable loads.
Flexible & Efficient Recharging: 10000W max AC input (~2 hours to full) and 2500W max solar input (MPPT, 12-60VDC) for true off-grid energy independence.
Professional Design & Safety: Multiple dedicated AC outputs, clear status indicator panel, emergency stop button, quiet <45dB(A) operation, and integrated protections against overvoltage, overload, short circuit, and temperature.

Technical Specifications

Specification	Details
Battery Capacity	5120Wh
Battery Type	LiFePO4 (LFP)
Continuous Output	5000W Pure Sine Wave
Peak Power	10000W
AC Input	10000W Max
Solar Input	2500W Max (MPPT, 12-60VDC)
IP Rating	IP54
Noise Level	<45dB(A)

Applications & Usage

Film & Media Production: Powering cameras, lighting rigs, and monitors on remote shoots
Construction & Mining: Running power tools, site lighting, and communications equipment
Railway & Infrastructure Work: Providing temporary power for machinery and safety systems
Field Exploration & Camping: Supporting research equipment and overlanding RVs with high-power needs
Emergency Backup: Serving as robust power source for critical operations during outages

Frequently Asked Questions

What kind of equipment can the 10000W peak power start?

This high surge capacity is designed to start heavy inductive loads like air compressors, submersible pumps, large circular saws, and professional film lighting ballasts that require 3-5 times their running wattage to start.

Is this unit truly suitable for outdoor construction sites?

Absolutely. The IP54 rating means it is protected against dust ingress and water splashes from any direction. Its robust metal housing and design are built to withstand the vibrations and conditions of active job sites.

How does the LiFePO4 (LFP) battery benefit professional use?

LFP batteries offer superior cycle life (often 3000+ cycles), enhanced thermal and chemical stability (safer), and better performance in a wide temperature range compared to standard NMC lithium batteries. This translates to lower long-term cost, greater reliability, and less downtime.
