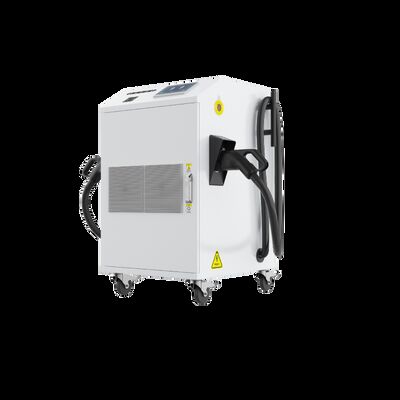

50 kW Wheeled EV Charger with V2G V2L V2H Mobile DC Fast Charger
| MOQ: | 5 |
| Standard Packaging: | Wooden box |
| Delivery Period: | 5-10 Days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000/week |
Detail Information
Place of Origin
China
Brand Name
Huijie
Model Number
HJ01
Dimensions (L X D X H):
660mm X 770mm X 1000mm
Weight:
180-270kg
Length Of Charging Cable:
3.5m
Connectors:
GBT/CCS/CCS1/CHAdeMO/NACS
Input Voltage:
400VAC / 480VAC (3P+N+PE)
Input Frequency:
50/60Hz
Output Voltage:
200-1000VDC
Output Current:
1-250A
Rated Power:
50 KW
Efficiency:
Peak Efficiency >96%
Communication Protocol:
The Solution Is Compatible With Mainstream Operating Platforms Such As OCPP, State Grid, YKC, And Xiaoju.
Display:
7" LCD With Touch Screen
Access Control:
RFID/ISO/IEC 14443A/B / POS Machine (Optional)
Communication:
WiFi, Ethernet / 3G/4G Modem (Optional)
Power Electronics Cooling:
Air Cooled
Operating Temperature:
-30°C To 75°C
Working / Storage Humidity:
≤95% RH / ≤99% RH (Non-condensing)
Altitude:
<2000m
Ingress Protection:
IP54
Safety Protection:
Overvoltage Protection, Lightning Protection, Overcurrent Protection, Leakage Protection, Waterproof Protection, Etc.
Emergency Stop:
Emergency Stop Button Disables Output Power
Highlight:
50 kW Portable EV Charger
,Multi-Connector Mobile DC Fast Charger
,V2G V2L V2H Wheeled EV Charger
Product Description
Wheeled DC Fast Charger 50 kW Multi-Connector
Enhance your EV infrastructure with this versatile mobile DC fast charger, equipped with four universal wheels for easy relocation in dynamic environments like events, construction sites, or temporary setups. Supporting single or dual guns, it delivers adjustable power from 40kW to 120kW, making it ideal for peak-hour demands, emergency charging, or facility maintenance without fixed installations.
Advanced features include V2G, V2L, and V2H capabilities for bidirectional energy flow, plus RFID/ISO/IEC 14443A/B access control and optional POS/credit card reader for secure payments. Compliant with OCPP standards and compatible with State Grid, YKC, Xiaoju platforms, it ensures seamless integration. The 7" LCD touch screen provides intuitive monitoring, while WiFi/Ethernet/3G/4G options enable remote communication.
Built for durability, it operates in extreme conditions (-30°C to 75°C) with IP54 protection against dust and water. Air cooling maintains efficiency (>96% peak), and safety measures guard against overvoltage, lightning, overcurrent, leakage, and more--with an emergency stop button for instant power disable.
Key Features
- Flexible mobility with wheeled design
- Multi-connector support for global EVs
- Intelligent charging for optimal performance
- Bidirectional charging capabilities (V2G, V2L, V2H)
- Advanced access control with RFID and optional payment systems
- Robust construction for extreme environments (-30°C to 75°C)
- High efficiency air cooling system (>96% peak)
- Comprehensive safety protections and emergency stop
FAQ
What power range does it support?
Adjustable from 40kW to 120kW, with output up to 250A and 200-1000VDC.
Which connectors are available?
GBT, CCS, CCS1, CHAdeMO, and NACS for global EV compatibility.
Does it support bidirectional charging?
Yes, includes V2G, V2L, and V2H functions.
How is access controlled?
RFID/ISO/IEC 14443A/B cards, optional POS/credit card reader.
What communication protocols are used?
OCPP, State Grid, YKC, Xiaoju, with WiFi/Ethernet/3G/4G options.
