5120Wh Capacity 3600W Pure Sine Wave Output IP54 Rated Portable EV Charger for Industrial Power Station

Name: 5120Wh Capacity 3600W Pure Sine Wave Output IP54 Rated Portable EV Charger for Industrial Power Station
Brand: Sichuan Huijie Green Power Technology CO.,Ltd
SKU: BP360H
Availability: InStock

Key Attributes

Brand Name:Huijie

Model Number:BP360H

Place of Origin:China

Minimum Order Quantity:50

Supply Ability:1000/Week

Delivery Time:5-10 Days

Payment Terms:L/C,D/A,D/P,T/T,Western Union

Standard Packaging:Wooden Box

Product Summary

5120Wh Capacity 3600W Pure Sine Wave Output IP54 Rated Portable EV Charger BP360H 5120Wh 3600W LFP Portable Power Station Engineered for mission-critical reliability, the BP360H is a 5.12kWh industrial-grade power station built to deliver robust, clean energy in the most demanding environments. With ...

Product Details

Highlight:

5120Wh Capacity Portable EV Charger

3600W Pure Sine Wave Output Portable Power Station

IP54 Rated Industrial Power Station

Battery Type: LFP

AC Waveform: Pure Sine Wave

Capacity: 5120wh

Rated Output Power: 3600W

150% Overload: Operation For 600s Possible

200% Overload: Operation For 100s Possible

250% Overload: Operation For 15s Possible

Peak Power: 18000W

AC Output: 100V/120V/230V/240V

Max.PV Input Powe: 600W 12V-60V 10A

Max.AC Input Power: 860W

Charging Time: ~6Hrs(AC) ~8.5Hrs(PV)

Size: 604.8x544x513.4mm

Weight: About 73KG

Protection Rating: IP54

Noise Emissions: <45 DB(A)

Charging Temperature Range: 0℃—45℃

Discharging Temperature Range: -20℃—45℃

Product Description

Detailed Specifications & Features

5120Wh Capacity 3600W Pure Sine Wave Output IP54 Rated Portable EV Charger

BP360H 5120Wh 3600W LFP Portable Power Station

Engineered for mission-critical reliability, the BP360H is a 5.12kWh industrial-grade power station built to deliver robust, clean energy in the most demanding environments. With a formidable 3600W continuous pure sine wave output and an extraordinary 18000W surge capacity, it effortlessly starts and runs heavy-duty tools, professional film equipment, and essential site infrastructure. Its rugged IP54-rated enclosure, LiFePO4 (LFP) battery core, and versatile 600W solar input make it the definitive power solution for construction, mining, remote media production, and field operations where grid power is unavailable or unreliable.

Product Features & Advantages

Industrial-Grade Power & Durability: Featuring a massive 5120Wh LiFePO4 (LFP) battery, it delivers a continuous 3600W AC output with a pure sine wave, safe for sensitive electronics. The rugged chassis and IP54 rating provide dust and water resistance for harsh job sites.
Massive Peak Power for Heavy Loads: An exceptional 18000W peak power ensures it can handle the intense startup surges of industrial motors, compressors, and pumps without faltering, outperforming standard generators.
Robust Overload Capability: Designed for real-world demands, it sustains 150% overload (5400W) for 10 minutes, 200% (7200W) for 100 seconds, and 250% (9000W) for 15 seconds, ensuring stability under variable loads.
Flexible & Efficient Recharging: Replenish power via a 860W max AC input (~6 hours to full) or efficiently harness sunlight with a 600W max solar input (MPPT, 12-60VDC) for true off-grid energy independence.
Professional Design & Safety: Includes multiple dedicated AC outputs (230V 16A & 13A), a clear status indicator panel (RUN/FAULT), an emergency stop button, and operates at a quiet <45dB(A). Integrated protections cover overvoltage, overload, short circuit, and temperature.

Applications & Usage

Film & Media Production: Powering cameras, lighting rigs, and monitors on remote shoots.
Construction & Mining: Running power tools, site lighting, and communications equipment.
Railway & Infrastructure Work: Providing temporary power for machinery and safety systems.
Field Exploration & Camping: Supporting research equipment and overlanding RVs with high-power needs.
Emergency Backup: Serving as a robust power source for critical operations during outages.

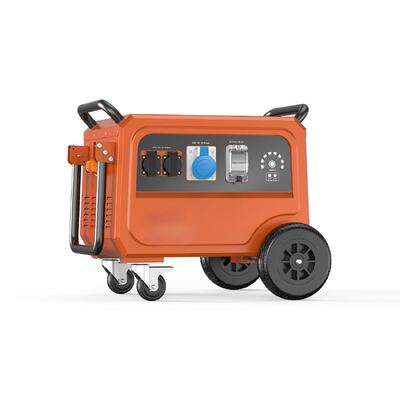

BP360H Portable Power Station front view showing control panel and outputs

BP360H Portable Power Station side view showing rugged construction and ports

Frequently Asked Questions

What kind of equipment can the 18000W peak power start?

This high surge capacity is designed to start heavy inductive loads like air compressors, submersible pumps, large circular saws, and professional film lighting ballasts that require 3-5 times their running wattage to start.

Is this unit truly suitable for outdoor construction sites?

Absolutely. The IP54 rating means it is protected against dust ingress and water splashes from any direction. Its robust metal housing and design are built to withstand the vibrations and conditions of active job sites.

How does the LiFePO4 (LFP) battery benefit professional use?

LFP batteries offer superior cycle life (often 3000+ cycles), enhanced thermal and chemical stability (safer), and better performance in a wide temperature range compared to standard NMC lithium batteries. This translates to lower long-term cost, greater reliability, and less downtime.
