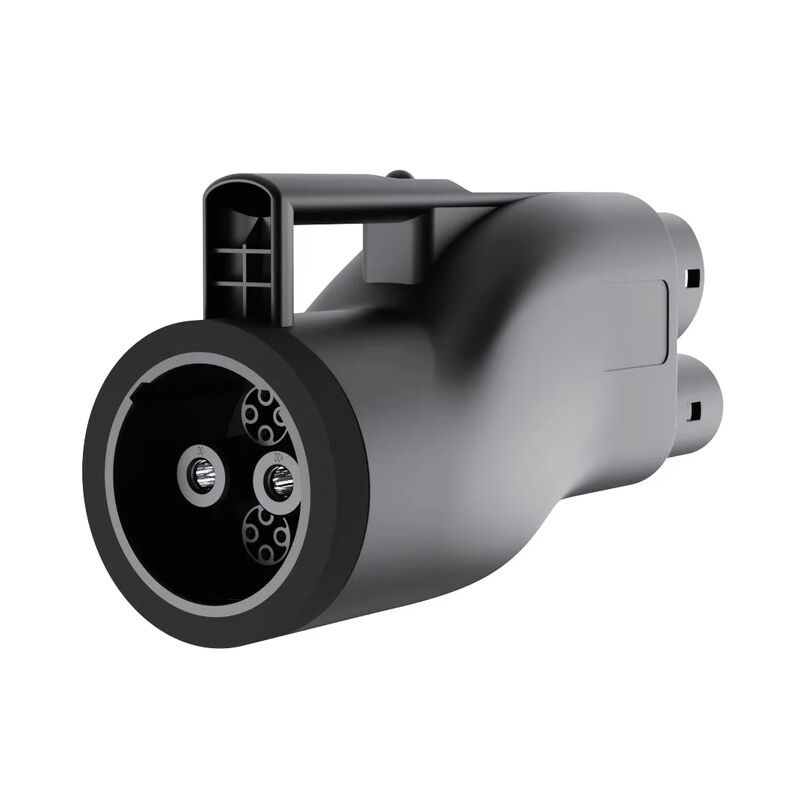

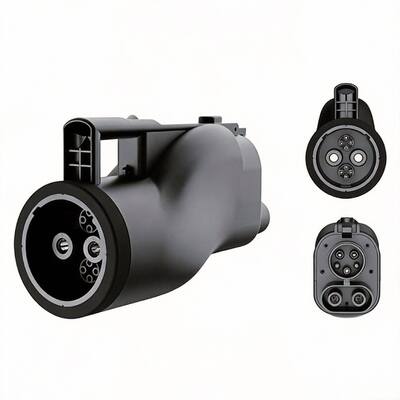

CHAdeMO Fast Charging Plug & Adapter | CHAdeMO to CCS2 Adapter for EV Chargers
| Input Standard: | CHAdeMO DC | Output Standard: | CCS2 DC |
| Rated Voltage: | Up To 1000V DC | Rated Current: | Up To 125A DC |
| Max Power: | Up To 125 KW | Protection Level: | IP54 |
| Operating Temp: | -30°C To +55°C | Cable Length: | 0.5m–1m (customizable) |
| High Light: | chademo car charger plug,chademo ev charging adapters,plug ev charging adapters |
||
| Parameter | Specification |
|---|---|
| Input Standard | CHAdeMO DC |
| Output Standard | CCS2 DC |
| Rated Voltage | Up to 1000V DC |
| Rated Current | Up to 125A DC |
| Max Power | Up to 125 kW |
| Operating Temp. | -30°C to +55°C |
| Protection Level | IP54 |
| Flame Safety | UL94 V-0 flame retardant |
| Insulation Resistance | >1000MΩ (DC 500V) |
| Contact Resistance | ≤0.5mΩ |
| Housing Material | High-strength PC+ABS |
- CHAdeMO to CCS2 Standard Compatibility - Connect CHAdeMO DC fast chargers to EVs using the CCS2 inlet, eliminating infrastructure limitations
- High Power DC Fast Charging - Supports current up to 125A and voltage up to 1000V DC, enabling up to 125kW charging depending on system configuration
- Safe, Efficient Energy Transfer - Silver-plated copper contacts and precision engineering ensure low resistance, stable output, and minimal heat generation
- Rugged & Weatherproof Design - IP54-rated enclosure with flame-retardant PC+ABS housing - ready for outdoor and heavy-duty operation
- Reliable Locking & Interlock Mechanism - Prevents disconnection during operation and ensures safe, stable charging sessions
- Customizable for OEM & EVSE Integrators - Support for logo printing, shell color options, and packaging customization to match your brand
- Cross-standard EV charging between CHAdeMO and CCS2 systems
- Public DC fast charging stations (CHAdeMO legacy infrastructure)
- EV fleet depots with multi-standard charging needs
- Temporary or mobile charging deployments
- International EVSE operators supporting mixed EV standards
- Cross-Standard Compatibility: Allows CHAdeMO chargers to service CCS2-equipped vehicles
- Reliable Performance: Stable high-voltage DC power transfer with minimal loss
- Rugged Build: Outdoor-capable, built for demanding real-world charging environments
- High Safety: Flame-retardant casing, secure locking, and thermal protection
- OEM Ready: Customization for manufacturers, distributors, and EVSE integrators
- Cost Efficiency: Extend existing CHAdeMO infrastructure to support newer EV models
