EV Electric Vehicle CHAdeMO Charging Cable Plug Cord 60A 80A 100A 125A 250A
Key Attributes
Product Summary
CHAdeMO Plug 60A/80A/100A/125A/250A DC Fast Charging Station with 6 Cable 1000V DC for EV Connectors High-Performance CHAdeMO DC Fast Charging Plug — Multiple Current Options, Reliable and Flexible The CHAdeMO DC Fast Charging Plug is engineered to deliver high-performance DC fast charging for ...
Product Details
EV chademo charging cable
,250A chademo charging cable
,CHAdeMO electric vehicle charging cord

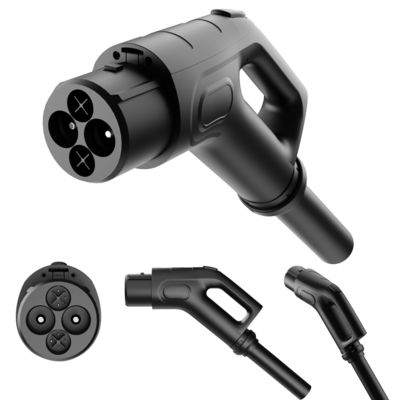

CHAdeMO Plug 60A/80A/100A/125A/250A DC Fast Charging Station with 6 Cable 1000V DC for EV Connectors
High-Performance CHAdeMO DC Fast Charging Plug — Multiple Current Options, Reliable and Flexible
The CHAdeMO DC Fast Charging Plug is engineered to deliver high-performance DC fast charging for electric vehicles, supporting multiple current options (60A, 80A, 100A, 125A, and 250A) and a maximum voltage of 1000V DC.
Paired with a robust 6-meter cable, this plug is ideal for public fast charging stations, fleet charging hubs, and commercial EV service centers that require flexible high-power delivery and global compatibility with CHAdeMO-equipped vehicles.
Product Introduction
Product Parameters
| Parameter | Specification |
| Input Standard | CHAdeMO DC |
| Rated Current Options | 60A / 80A / 100A / 125A / 250A |
| Rated Voltage | Up to 1000V DC |
| Max Power | Up to 250 kW DC |
| Operating Temp. | -30°C to +55°C |
| Protection Level | IP55 |
| Flame Safety | UL94 V-0 flame retardant |
| Insulation Resistance | >1000MΩ (DC 500V) |
| Contact Resistance | ≤0.5mΩ |
| Housing Material | High-strength PC+ABS |
♦The above parameters are standard parameters, and we can also provide parameter customization services.
Product Core Advantages
â
Multiple Current Configurations
Available in 60A, 80A, 100A, 125A, and up to 250A — adapt to different vehicle needs and charger capabilities.
â
Ultra-High Voltage Support
Handles up to 1000V DC, enabling ultra-fast charging up to 250 kW (depending on station and vehicle compatibility).
â
Robust, High-Quality Cable
Equipped with a durable 6-meter DC cable, offering high flexibility and easy maneuverability during charging.
â
Reliable Contact Performance
Silver-plated copper alloy contacts provide excellent conductivity, reduce heat generation, and ensure stable power delivery.
â
IP54 Weatherproof Rating
Suitable for outdoor installation and usage under various weather conditions, including rain and dust.
â
Flame-Retardant, High-Strength Housing
Constructed from high-strength PC+ABS materials, UL94 V-0 certified, for superior fire resistance and impact durability.
â
Enhanced Safety Protections
Built-in protections against overcurrent, overvoltage, overheating, and short-circuit, ensuring safe and reliable operation.
â
OEM & Branding Customization
Supports custom logos, cable colors, housing designs, and branding for operators and manufacturers.
Product Details


♦The appearance dimensions can provide customized socket shapes.
Application Scenarios
- Public DC fast charging stations in urban or highway networks
- EV fleet depots needing fast turnaround
- Commercial EV service centers and workshops
- Parking facilities with fast DC charging infrastructure
- Temporary or mobile charging stations requiring high-power delivery
Contact the technical team now to get exclusive support!
Advantages of Our CHAdeMO Gun Cable
- Flexible configurations: Supports multiple current levels to meet diverse charging requirements.
- High power capability: Up to 250 kW DC for ultra-fast energy replenishment.
- Excellent safety design: Comprehensive electrical protections and flame-retardant materials.
- Outdoor-ready: IP54 weatherproof, ideal for all types of installation environments.
- Durable construction: Superior materials ensure long service life under heavy-duty use.
- OEM flexibility: Customizable for different operators or regional branding requirements.
- Plug-and-play design: Easy integration into existing DC charging stations.
Frequently Asked Questions (FAQs)
Q1: Can this plug be used with all CHAdeMO EVs?
A: Yes. It is fully compliant with CHAdeMO standards and compatible with all CHAdeMO-equipped vehicles.
Q2: What is the cable length, and can it be customized?
A: The default is 6 meters; we can provide customized lengths upon request.
Q3: Can it be used outdoors?
A: Yes. It has IP54 protection for safe outdoor use in various weather conditions.
Q4: Do you provide OEM branding services?
A: Yes. We support logo printing, housing color customization, and custom packaging.
Need a reliable, high-power CHAdeMO DC charging solution?
Contact us today for technical support, competitive factory pricing, and OEM customization
